Lootom TGM2800D bi-directional amplifier

TGM2800D bi-directional amplifier adopts imported GaAs module amplification. It can be used in CATV network, digital network and telecom network with high gain, low ...

Current position:HOME > HFC

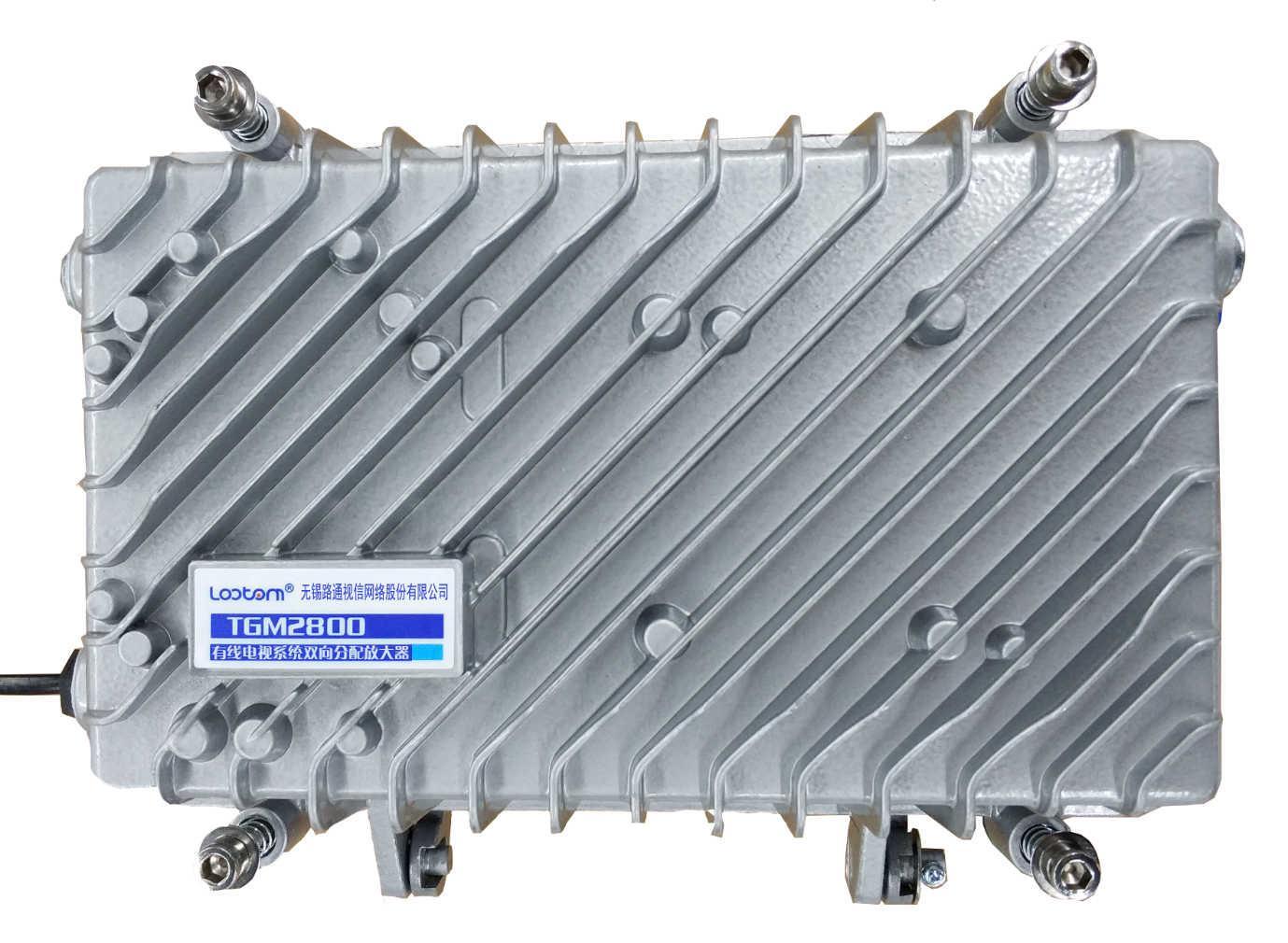

Lootom TGM2800D bi-directional amplifier




Overview        TGM2800D bi-directional amplifier adopts imported GaAs module amplification. It can be used in CATV network, digital network and telecom network with high gain, low distortion and excellent flatness. It can be used as an amplifier or a distribution amplifier in bidirectional CATV system. Each port has independent bidirectional filter facilitates network test. Features         Input stage adopt imported CATV head-end amplifier modules, input and output stage adopt imported CATV exclusive power multiplier amplifier module, greatly improved the nonlinear distortion characteristics, RF output level is up to 108dBuV
        Bi-directional split frequency 42/54MHz or 65/87MHz optional (can be customized)
        Input stage, inter-stage level and the slope are step adjustable; reverse level port independent variable
        Balanced alternative technology, adopt attenuation plug-in form to do balanced adjustment

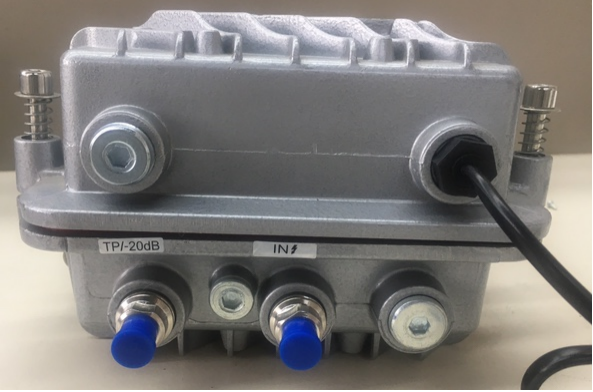

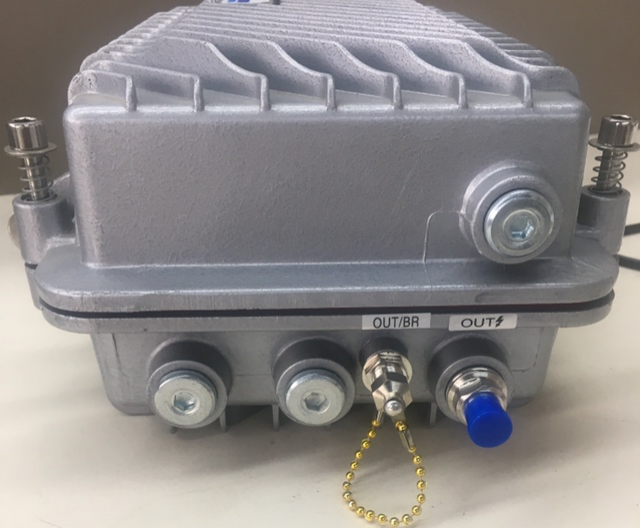

        Forward output, reverse input share a common external RF test point, easy for forward and reverse debugging
        Reserved for network management interface,transponder option has national standard network management interface, comply with SCTE HMS and IEC network management standard
        RF return port has 3-state reverse noise reduction switch and plug-in attenuator, easy for isolating various intrusive interference
        Users can choose dynamic noise isolator
        RF power level monitoring options optional, easy for remotely real-time monitoring the output signal level of the bi-directional distribution amplifier
        High-efficiently switching power, perfect multi-stage surge suppression circuitry, improved anti-lightning strike and anti-surge shocks, further improved the reliability Technical Specifications

NO.

Item

Unit

Description

1

Frequency Range

MHz

88862 (1000)

565(42)

2

Input /Output Return Loss

dB

≥16(88550MHz)

≥14(5501000MHz)

≥16

3

RF Output Signal Level

dBμV

≥108 (single output port)

≥ 104(dual output port)

≥104

4

Flatness

dB

±0.75

±0.75

5

Full Gain(Min)

dB

≥ 34(single output port)

≥ 30(dual output port)

≥24(single output port))

≥20(dual output port)

6

Gain Adjustment Range

dB

020

020

7

Slope Adjustment Range

dB

015

015

8

NF

dB

≤6.0

≤6.0

9

NPR

dB

/

≥40@dynamic range ≥35dB

10

HUM

dBc

≥66

/

11

CTB

dBc

≥71

/

12

CSO

dBc

≥68

/

13

Group Delay

ns

≤5.0

(112.25MHz/116.68MHz)

≤20.0

(57MHz/59MHz)

14

Dimension (W×H×L)

mm

230×330×130

15

Power (two options)

V

AC 60V 50Hz/AC 220V 50Hz

16

Operating Temperature

-25+65

17

Weight

kg

4
